UFQ322/32系列超低抖動LVPECL晶體振蕩器
來源：http://m.djbyg.com 作者：金洛鑫電子 2022年07月11

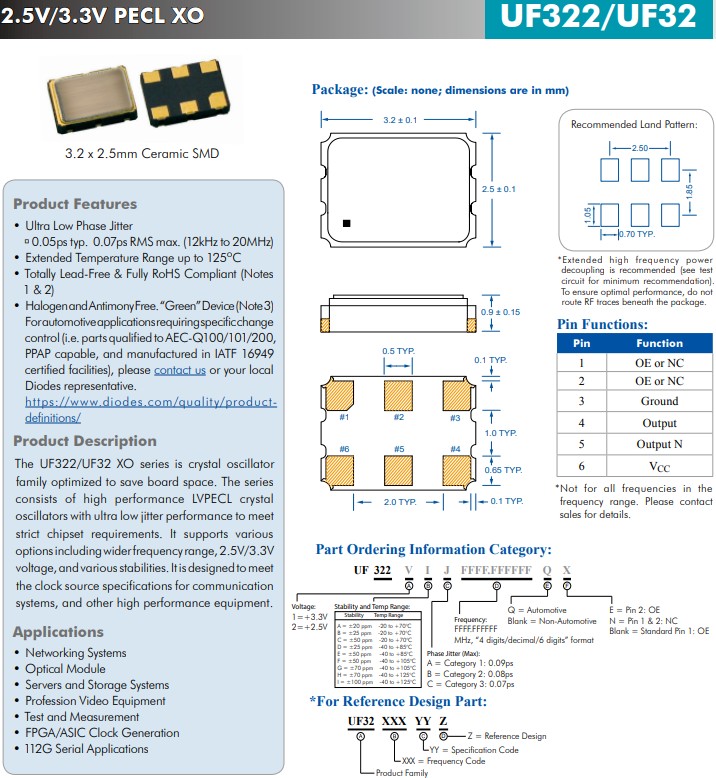

亞陶晶振UF322/UF32 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。UFQ322/32系列，小體積尺寸3.2x2.5mm、超低抖動LVPECL晶體振蕩器該系列由具有超低抖動性能的高性能LVPECL差分晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
.JPG)
.JPG)
特征：
超低相位抖動
0.05ps 典型值。0.07ps RMS最大值。（12kHz至20MHz）
擴展溫度范圍高達 125oC
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G 串行應用
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| FRBST1061 | Diodes Incorporated | SaRonix-eCera™ FR | 61.44MHz | ±50ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| KM3270004 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm |
| FK2500021 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FN4000159 | Diodes Incorporated | SaRonix-eCera™ FN | 40MHz | ±50ppm |
| FK0800003 | Diodes Incorporated | SaRonix-eCera™ FK | 8MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm |

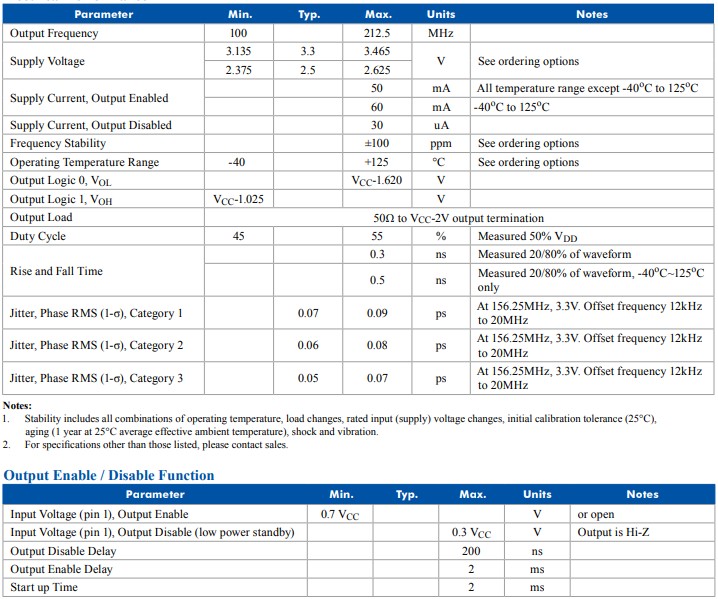

Product Parameters
