- 規格型號：1494541
- 頻率：48M
- 尺寸：3225
- 產品描述：D3SX48E000002E是臺產鴻星(HOSONIC)推出的一款高性能HCMOS輸出有源晶振,隸屬于鴻星D3SX系列,采用3225(3.2×2.5×1.2mm)標準貼片封裝,完美適配高密度PCB布局與小型化電子設備設計.
D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振
.png)
.png)
D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振
D3SX48E000002E是臺產鴻星(HOSONIC)推出的HCMOS輸出有源晶振,憑借成熟的工藝,穩定的性能與親民的性價比,廣泛應用于各類電子設備.該晶振采用3225(3.2×2.5mm)標準貼片封裝,體積緊湊,便于高密度PCB布局,支持自動化貼片與回流焊工藝,大幅提升生產效率,降低人工成本.作為HCMOS輸出類型晶振,它具備高驅動能力和快速轉換速度,適用于高速數字電路和數據通信等需要快速,穩定時鐘信號的場合,無需額外放大電路即可驅動多個負載.產品依托鴻星嚴格的品控體系,頻率精度高,溫漂小,在-40℃~+85℃寬溫范圍內保持穩定輸出,滿足工業級與消費級設備的嚴苛需求.此外,該晶振功耗低,起振快,抗振動能力強,符合RoHS環保標準,可廣泛應用于智能家居,通信設備,儀器儀表,便攜式電子設備等領域,為各類數字系統提供精準,可靠的時鐘基準,充分展現臺產鴻星晶振的高品質與實用性.
.png)
.png)
D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振
| 原廠型號 Originalmodel： | D3SX48E000002E | 品牌brand： | 鴻星 |
| Manufacturer品牌 | 鴻星 | OperatingTemperature溫度 | -40℃~+85℃ |
| Series型號 | D3SX | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 1.2MM |
| Frequency頻率 | 48M | Termination 腳位 | 4-pad |
| 輸出方式 Output： | HCMOS輸 | PackageType 封裝類型 | 4-smd |
| Voltage-Supply電壓 | 3.3V有源晶振 | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±30PPM | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3225mm | 最小包裝數MPQ： | 3000 |
.png)
.png)
D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振

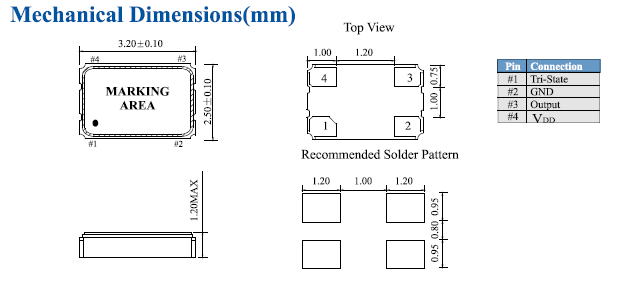

 3225 OSC.png)
.png)
D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振
| E3SB25E00003FE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 25 MHz | ±15ppm | ±15ppm | 18pF |
| E3SB24E004000E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 18pF |
| E3SB32E001500E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 12pF |
| E3SB37E0X0004E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 37.4 MHz | ±10ppm | ±10ppm | 16pF |
| E3SB25E001803E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 12pF |
| E3SB16E0X000WE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 16.384 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB27E0X000VE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 27.12 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB27E00000DE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 27 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB50E00000AE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 50 MHz | ±10ppm | ±10ppm | 18pF |
| E3SB26E000011E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 12pF |
| E2SB40E000104ECBB8 | Hosonic鴻星晶振 | E2SB | MHz Crystal | 40 MHz | ±10ppm | ±7ppm | 12pF |
| E2SB38E0X0300E | Hosonic鴻星晶振 | E2SB | MHz Crystal | 38.4 MHz | ±10ppm | ±10ppm | 8pF |
| E3SB8E0000003E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 10pF |
| E2SB40E000107E | Hosonic鴻星晶振 | E2SB | MHz Crystal | 40 MHz | -12ppm, +20ppm | ±5ppm | 12pF |
| E2SB40E00010AE | Hosonic鴻星晶振 | E2SB | MHz Crystal | 40 MHz | ±10ppm | ±7ppm | 7pF |
| E1SB24E00001EE | Hosonic鴻星晶振 | E1S | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 18pF |
| E1SB26E007902E | Hosonic鴻星晶振 | E1SB | MHz Crystal | 26 MHz | ±15ppm | ±10ppm | 9pF |
| E3SB24E00000QE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB40E00010JE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 40 MHz | -12ppm, +20ppm | ±5ppm | 12pF |
| E3SB12E000022E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 18pF |
| E3SB16E000028E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB40E00090DE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 40 MHz | ±20ppm | ±10ppm | 12pF |
| E3SB38E0X0006E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 38.4 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB40E00010KECBB8 | Hosonic鴻星晶振 | E3SB | MHz Crystal | 40 MHz | ±15ppm | ±7ppm | 6pF |
| E3SB39E000006E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 39 MHz | ±15ppm | ±8ppm | 10pF |
| E3SB38E0X1806E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 38.4 MHz | ±20ppm | ±20ppm | 10pF |
| E3SB48E000801ECBB8 | Hosonic鴻星晶振 | E3SB | MHz Crystal | 48 MHz | ±10ppm | ±10ppm | 12pF |
| E3SB12E00004EE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 12 MHz | ±35ppm | ±8ppm | 12pF |
| E1SB60E003701E | Hosonic鴻星晶振 | E1S | MHz Crystal | 60 MHz | ±20ppm | ±10ppm | 9pF |
| E1SB55E0X0002E | Hosonic鴻星晶振 | E1SB | MHz Crystal | 55.2 MHz | ±10ppm | ±10ppm | 10pF |
| E2SB27E0X0000E | Hosonic鴻星晶振 | E2SB | MHz Crystal | 27.12 MHz | ±10ppm | ±10ppm | 8pF |
| E2SB24E001801E | Hosonic鴻星晶振 | E2SB | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 12pF |
| E2SB40E000108E | Hosonic鴻星晶振 | E2SB | MHz Crystal | 40 MHz | ±15ppm | ±7ppm | 6pF |
| ETSB37E0X0014E | Hosonic鴻星晶振 | ETSB | MHz Crystal | 37.4 MHz | ±10ppm | ±10ppm | 16pF |
| ETSB38E0X0005E | Hosonic鴻星晶振 | ETSB | MHz Crystal | 38.4 MHz | ±10ppm | ±10ppm | 10pF |
| E1SB24E000007E | Hosonic鴻星晶振 | E1SB | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 10pF |
| E1SB25E000009E | Hosonic鴻星晶振 | E1S | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 6pF |
| E1SB24E004000E | Hosonic鴻星晶振 | E1S | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 18pF |
| E1SB38E0X0001E | Hosonic鴻星晶振 | E1S | MHz Crystal | 38.4 MHz | ±10ppm | ±10ppm | 10pF |
| E1SB39E000000E | Hosonic鴻星晶振 | E1SB | MHz Crystal | 39 MHz | ±13ppm | ±8ppm | 10pF |
| E1SB40E00090AECBB8 | Hosonic鴻星晶振 | E1S | MHz Crystal | 40 MHz | ±20ppm | ±10ppm | 12pF |
| E1SB48E000506E | Hosonic鴻星晶振 | E1S | MHz Crystal | 48 MHz | ±16ppm | ±8ppm | 11.1pF |
| E1SB25E001000E | Hosonic鴻星晶振 | E1S | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 18pF |
| E1SB32E007900E | Hosonic鴻星晶振 | E1SB | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 10pF |
| E1SB32E001502E | Hosonic鴻星晶振 | E1SB | MHz Crystal | 32 MHz | ±20ppm | ±10ppm | 12pF |
| E2SB12E000005E | Hosonic鴻星晶振 | E2SB | MHz Crystal | 12 MHz | ±20ppm | ±20ppm | 12pF |
| E1SB37E0X0002E | Hosonic鴻星晶振 | E1S | MHz Crystal | 37.4 MHz | ±10ppm | ±10ppm | 16pF |
| E1SB32E001501ECBB8 | Hosonic鴻星晶振 | E1S | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 9pF |
| E1SB16E000004E | Hosonic鴻星晶振 | E1SB | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 8pF |
| ETSB24E000003E | Hosonic鴻星晶振 | ETSB | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 8pF |
| ETSB48E007500ECBB8 | Hosonic鴻星晶振 | ETSB | MHz Crystal | 48 MHz | ±15ppm | ±10ppm | 10pF |
| ETSB48E007502E | Hosonic鴻星晶振 | ETSB | MHz Crystal | 48 MHz | ±15ppm | ±10ppm | 10pF |
| ETSB32E000003E | Hosonic鴻星晶振 | ETSB | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF |
| ETSB60E003700E | Hosonic鴻星晶振 | ETSB | MHz Crystal | 60 MHz | ±20ppm | ±10ppm | 9pF |
| E3SB14E0X0002E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 14.7456 MHz | ±30ppm | ±30ppm | 12pF |
| E3SB10E000007E | Hosonic鴻星晶振 | E3SB | MHz Crystal | 10 MHz | ±30ppm | ±30ppm | 12pF |
| E3SB25E00000DE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 25 MHz | ±10ppm | ±10ppm | 10pF |
| E3FB24E00000KE | Hosonic鴻星晶振 | E3FB | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 12pF |
| E3SB48E00000TE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 48 MHz | ±30ppm | ±30ppm | 18pF |
| E3SB50E00002AE | Hosonic鴻星晶振 | E3SB | MHz Crystal | 50 MHz | ±18ppm | ±7ppm | 9pF |
