- 規格型號：19042861
- 頻率：25MHz
- 尺寸：5032mm
- 產品描述：FC5BQCCMC25.0-T1|歐美進口福克斯晶振|C5BQ晶振|25MHz|5032晶振,工業自動化設備,高純度石英晶體,醫療設備,高端路由器,游戲主機,-40℃~+85℃

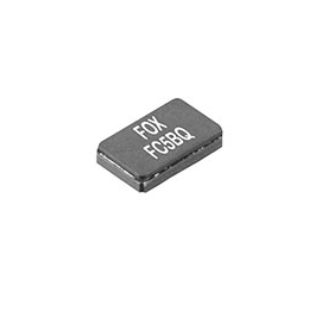

FC5BQCCMC25.0-T1|歐美進口福克斯晶振|C5BQ晶振|25MHz|5032晶振
.png)
.png)
FC5BQCCMC25.0-T1|歐美進口?？怂咕д駖C5BQ晶振|25MHz|5032晶振
作為典型的25MHz無源晶振,FC5BQCCMC25.0-T1的核心頻率精準鎖定25MHz,該頻率是高速信號處理,射頻通信電路的關鍵基準頻率,廣泛適配FPGA(如XilinxArtix-7),射頻芯片(如TICC1310)及工業級MCU.其無源特性無需內置振蕩電路,僅需外部匹配18pF/22pF負載電容即可穩定起振,大幅簡化電路設計,降低整體成本.電氣性能達到歐美工業級標準:常溫(25℃)下頻率公差控制在±5ppm,全工作溫區(-40℃~+85℃)內頻率溫度穩定性低至±15ppm,可確保高速數據傳輸時的時鐘同步精度,避免因頻率偏移導致的信號失真或通信中斷,激勵功率范圍為5μW~50μW,兼容不同芯片的oscillator驅動能力,在低功耗設備(如無線傳感器)中,可通過降低激勵功率至5μW,延長電池續航30%以上,輸出波形為標準正弦波,諧波失真≤-40dB,無需額外濾波電路即可直接對接數字芯片,減少信號干擾.
.png)
.png)
FC5BQCCMC25.0-T1|歐美進口?？怂咕д駖C5BQ晶振|25MHz|5032晶振
| 原廠型號 Original model ： | FC5BQCCMC25.0-T1 | 品牌 brand ： | FOX晶振 |
| 品牌 brand ： | FOX晶振 | ESR（等效串聯電阻） Resistance) | 50 Ohms |
| 型號名稱 Model name： | C5BQ | 溫度 Operating Temperature | 0°C ~ 70°C |
| Type 系列： | MHz Crystal | 腳位 Termination： | 4pad |
| 頻率 frequency ： | 25MHz晶振 | 封裝類型 Package Type： | 4-SMD |
| Frequency Stability頻率穩定度 | ±30ppm | 高度 Package Height： | 1.20mm |
| frequency tolerance頻率容差 | ±30ppm | 最小包裝數 MPQ ： | 1000 |
| Load capacitance 負載電容 | 20pF | 包裝 Packaging： | Tape and Reel |
| Size / Dimension 尺寸 | 5032mm | 安裝方式 Mounting Style： | Surface Mount |
.png)
.png)
FC5BQCCMC25.0-T1|歐美進口福克斯晶振|C5BQ晶振|25MHz|5032晶振
.png)
FC5BQCCMC25.0-T1|歐美進口福克斯晶振|C5BQ晶振|25MHz|5032晶振
| FC4SDCBMF10.0-T1 | FOX | HC49SDLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF8.0-T1 | FOX | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF3.6864-T1 | FOX | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF |
| FKFSREIHM0.032768-T3 | FOX | FSRLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC4STCBMF20.0 | FOX | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF |
| FK135EIHM0.032768-T3 | FOX | K135 | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC5BQCCMC12.0-T1 | FOX | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMM25.0-T1 | FOX | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMM12.0-T1 | FOX | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC7BSCCMM8.0-T1 | FOX | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMM7.3728-T1 | FOX | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF |
| FKFSXEIHM0.032768-T3 | FOX | FSXLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FKFSREIBM0.032768-T3 | FOX | FSRLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 6pF |
| FC8AQCCMC3.6864-T1 | FOX | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF |
| FC8AQCCMC4.0-T1 | FOX | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF |
| FC4SDCBMF11.0592-T1 | FOX | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF25.0-T1 | FOX | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF16.0-T1 | FOX | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF12.0-T1 | FOX | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF24.0-T1 | FOX | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM25.0-T1 | FOX | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF14.7456-T1 | FOX | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM8.0-T1 | FOX | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF7.3728-T1 | FOX | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF6.0-T1 | FOX | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF4.0-T1 | FOX | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC3BQBBME12.0-T3 | FOX | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF |
| FC3BQBBMM25.0-T3 | FOX | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF |
| FKT38EIHD0.032768 | FOX | NC38LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC4STCBMF10.0 | FOX | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF25.0 | FOX | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF16.0 | FOX | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF12.0 | FOX | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF11.0592 | FOX | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF8.0 | FOX | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF7.3728 | FOX | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBLF3.579545 | FOX | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF |
| FC4STCBMF4.0 | FOX | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF3.6864 | FOX | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF |
| FKT26EIHD0.032768 | FOX | NC26LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FKT38EIHQ0.032768 | FOX | NC38LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC5BQCCMC25.0-T1 | FOX | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC24.0-T1 | FOX | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC20.0-T1 | FOX | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC16.0-T1 | FOX | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMC8.0-T1 | FOX | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMM6.0-T1 | FOX | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMC7.3728-T1 | FOX | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF |
| FC8AQCCMC6.0-T1 | FOX | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF |
| FC4SDCBMF12.288-T1 | FOX | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM16.0-T1 | FOX | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF18.432-T1 | FOX | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBLF3.579545-T1 | FOX | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF |
| FC4SDCBMM4.0-T1 | FOX | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC2BSBBMM16.0-T3 | FOX | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF |
| FC4STCBMF18.432 | FOX | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF14.7456 | FOX | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF |
| FKT26EIHQ0.032768 | FOX | NC26LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC3BACALI16.0-T3 | FOX | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF |
| FC3BACBDI16.0-T3 | FOX | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF |
